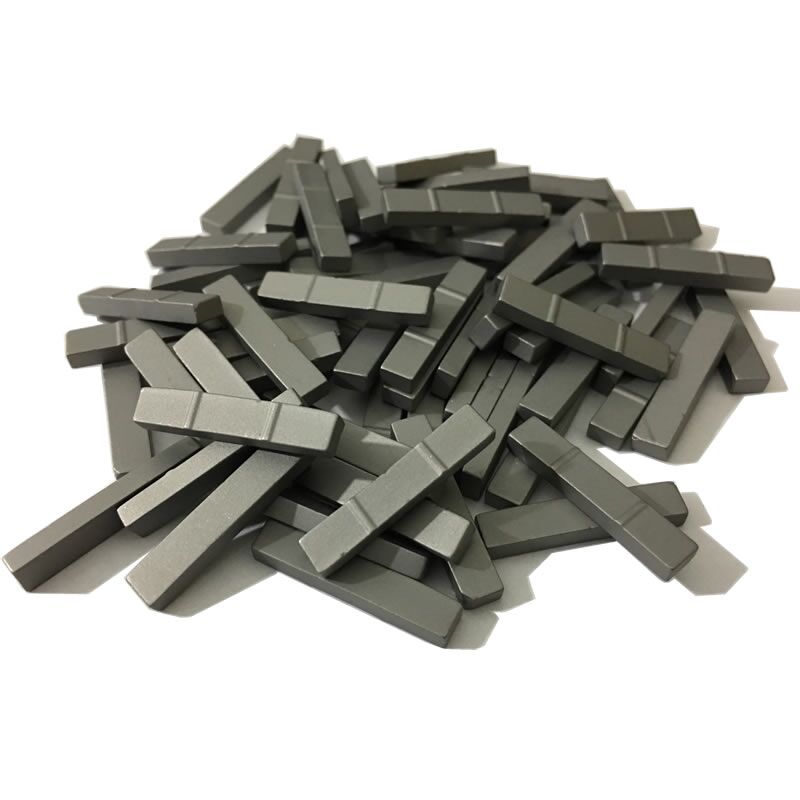

Tungsten carbide inserts for BHA stabilizers

BHA HF3000

Zhuzhou Hongtong manufactures high quality tungsten carbide inserts for stabilizers.  The specific tungsten carbide grades offered for these inserts are produced in high throughput robotic presses with high quality and consistency.  The carbide grades are chosen to provide high performance for the stabilizers downhole.

Our common shape and size
Shape Dimensions (mm)
Rectangular  6 x 5 x 3
Rectangular  6 x 5 x 4
Rectangular  13 x 5 x 3
Rectangular  13 x 5 x 4
Rectangular  20 x 5 x 4
Rectangular  25 x 5 x 3
Rectangular 25 x 5 x 4
Round  6-20 diameter
Serrated 10-20 diameter


Common grade
Grade Density /Cm 3 Bend Strength N/mm 2 Hardness HRA
YG6 14.8-15.1 ≥1770 ≥90
YG8 14.6-14.9 ≥1840 ≥89
YG11 14.4-14.7 ≥2700 ≥88.5
YG11C 14.4-14.7 ≥2800 ≥86.5
YN6 14.7-15.0 ≥1800 ≥90.5
YN8 14.4-14.7 ≥1900 ≥89
YN12 14.1-14.4 ≥2100 ≥88



To meet a variety of the most demanding drilling conditions, we offer various sizes and shapes of tungsten carbide inserts for hard-facings in different options for your stabilizers. Each carbide insert is tailored to your specific needs and our expert application ensures exceptional resistance to wear and tear, prolonging the life of your stabilizers. Such as HF2000, geothermal hard-facing utilizes tungsten carbide bricks, brazed to the stabilizer blade and surrounded by tungsten impregnated composite rod; HF3000, A hard-facing method that applies the maximum amount of premium tungsten carbide on any wear surface. It can be applied in varied thickness and uses tungsten carbide inserts to maximize abrasive and impact durability; and so on.

Zhuzhou Hongtong can offer their expertise in selecting the carbide grade, size and shape which best suited to solve your exact needs.

*Tungsten carbide(WC) is also known as solid carbide and cemented carbide.
