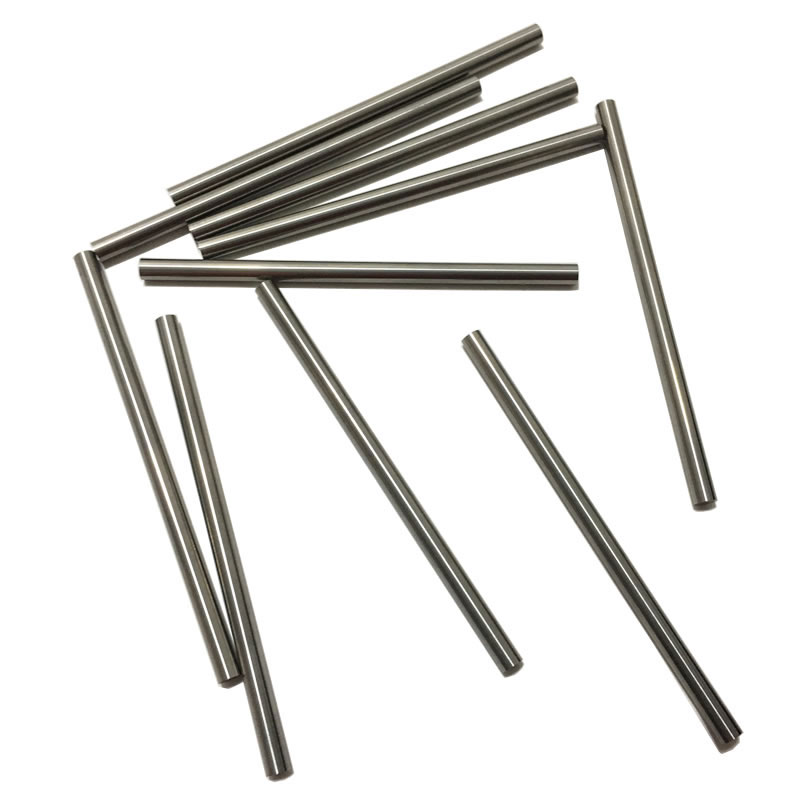

Tungsten Carbide Rod Blanks

Tungsten Carbide Rod is mainly made of WC and Co by powder metallurgic method processing. They have a good shock resistance and bending resistance. With more than 20 years’ experience, we are able to provide you the carbide rods you want.


-- HIP sintering
-- 89-93HRA with high wear resistance
-- Polished surface
-- 100% Virgin pure raw materials
-- Flexible payment terms (L/C,T/T, western union, etc)
-- Certificate of origin available
-- 7days 24 hours after-sale service

 Common shape and size see below:

WC Grain size range 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Diameter range 0.33mm--60mm
Length range 3mm--1000mm;
Diameter Grade h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9).
Surface Roughness Polished Ra 0.04 or unpolished
Remarks OEM acceptable

 Recommend grades and specifications:

Grade/ Properties / Application
Grade Equal to ISO Category Number Performance Performance&application recommended
    Density Bend Strength Hardness
    G/Cm 3 N/mm 2 HRA
YG6X K10 14.8-15.1 ≥1560 ≥91.0 Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A K10 14.7-15.1 ≥1580 ≥91.0
YG6 K20 14.7-15.1 ≥1670 ≥89.5 Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8 K30 14.6-14.9 ≥1840 ≥89 Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts.
YG10X   14.5 2400 91.5 Fine grain alloy, good wear resistance,Used for processing hard
          wood, veneer board,PCB,PVC and metals.
YL10.2   14.5 2400 91.8 Forming or stamping dies for metal powders and nonmental powders.
YG13X   14.3 2600 89.5 For oil cone dril bits, for medium soft and medium-hard rocks.

 Application of the tungsten carbide rods

Various carbide grades with stable properties have been widely recognized by worldwide makers of tools. Tungsten carbide rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel-based alloy, titanium alloy, and nonferrous metals. They are widely used for HSS Cutting tool, carbide end mills, carbide cutting tool, NAS cutting tool, aerospace cutting tool, carbide drills, pilot reamer, electronics cutter, step drill, metal cutting saw, carbide burrs, carbide tipped cutter etc.
